Rapid Deployment Tent
Laboratory and blood bank units

Laboratory and blood bank units

Radiology unit

Radiology unit

Emergency room

Emergency room

Cafeteria Space

Cafeteria Space

Eco-Friendly System

Eco-Friendly System

Independent Power Supply

Independent Power Supply

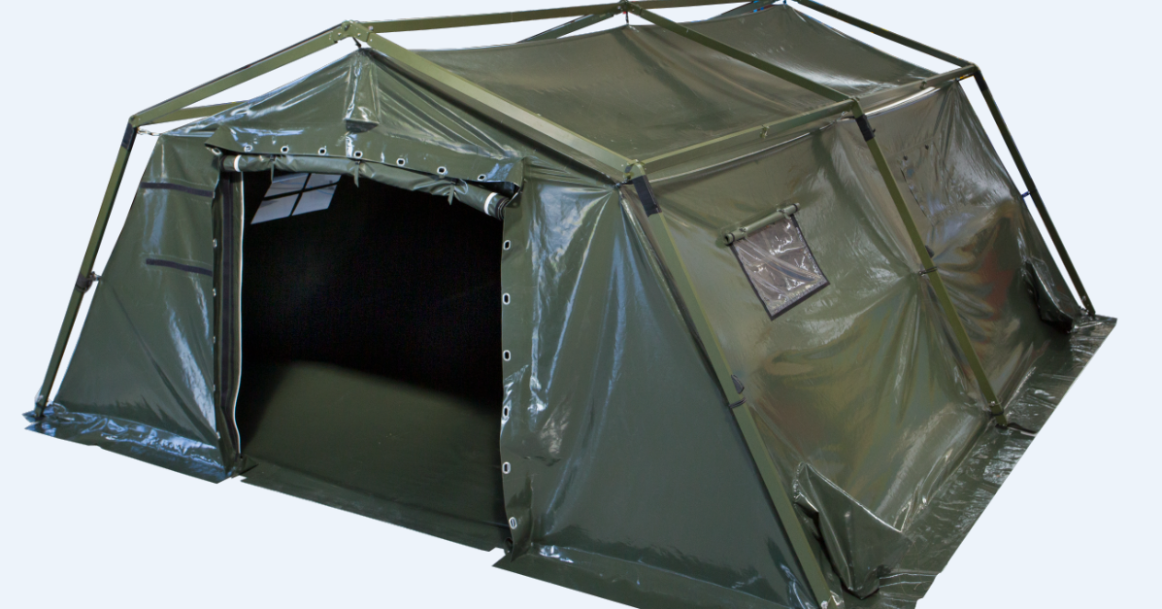

Rapid Deployment Shelter

Aluminium metal frame shelters are produced as rapidly deployable and tactical use shelter that maximizes modularity. This feature provides operational effectiveness, durability and versatility. This system includes variety of sizes according to spectrum of customer requirements from defense and military organizations.



Our rapid deployment modular tent systems, based on an externally positioned foldable aluminium frame with the fabric cover. Shelters can be connected each other in various direction. The tent is produced of high quality PVC coated fabrics which are fire proof and UV rays resistant. The main cover, the ground cloth and the gables are fitted in one piece by using High frequency sealing technology is used for combining main cover and ground cloth in one piece.



Structural Efficiency



Structural base of shelter ensures advantages of snow load strength and wind resistant. Designed to simplify the deployment process.
Significant factor is to minimize lifting forces and eliminate all lifting during deployment by decreasing set up time and expenses.



The need for system components such as generators, lights and communication equipment are successfully integrated into the shelter. The shelters are easily integrated with other shelters and vehicles for military base missions.



Model

MFT - 18

MFT - 36

MFT - 54

Internal Area (m²)

18m²

36m²

54m²

External Dimension(cm)

300x580x280

600x580x280

900x580x280

Weights (kg)

145

185

275

Frame Dimension (mm)

70x40

70x40

70x40

Production Technology of frames

Machining and metal welding

Production Technology of fabrics

High-frequency welded (HFW)



rapid deployment shelter 1/6

2/6

3/6

4/6

5/6

6/6
